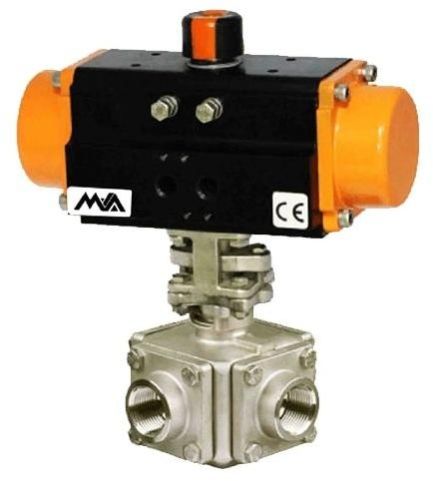

Pneumatic Actuator Operated 3 Way and 4 Way Ball Valve

Pneumatic Actuator Operated 3 Way and 4 Way Ball Valve

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Size Range 1/2″ to 4″ Screwed / Flange / Triclover / Socket Weld
Valve Body ASTM A351 Gr. CF8M / ASTM A216 Gr. WCB / C.I.
Valve Ball ASTM A351 Gr. CF8 / CF8M
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Valve Stem
Stainless Steel AISI 304 /AISI 316
Valve Gland
Stainless Steel AISI 304 /AISI 316
Valve Seat Packing
PTFE (Gland Filled, Carbon Filled, Teflon – Optional in case of high Temperature)
Actuator Type
Rack and Pinion Type
Actuator Actuation
Double Acting / Single Acting (Spring Return)
Actuator Mounting Std.
ISO 5211 An International Standard
Actuator Pneumatic Connections
NAMUR Standard
Brand Name

“MVA” Offers investment casting Cast Steel / CF8 / CF8M / CF3M ball valve in three way & four way design MVA with flow direction in ‘L’ Port / ‘T’ Port / ‘X’ Port with on-off and modulating type manual, pneumatic and motorized operation.


Valve End Connection: Screwed to – BSP / NPT Flanged to ASME B16.5 Class 150 / 300 Triclover Ends – (On Request) | Socket Weld – (On Request)

Yes! I am interested


Item Type of Test Hydro Testing Pressure Working Pressure Operating Temperature (high Temp. On Request)
Actuator Pneumatic Bubble Test 180 PSIG 45 to 150 PSIG -20°C to 80°C
Valve Body Screwed End Hydraulic T435 PSIG 335 PSIG Max.180°C
Valve Body Flange 150# Hydraulic 435 PSIG 335 PSIG /td> Max.180°C
